لیست کامل محصولات مین ول

15W~150W

Features　:

Miniature size, non-PFC

5G vibration, 70℃ operation

300VAC input surge

Suitable for critical applications

2 outputs are isolated for RID series

Model

Single：

RS-15 RS-25 RS-35 RS-50 RS-75 RS-100 RS-150

Dual：

RD-35 / RD-50 / RD-65 / RD-85 / RD-125 / RID-50 / RID-65 / RID-85 / RID-125

Triple：

RT-50 / RT-65 / RT-85 / RT-125

Quad：

RQ-50 / RQ-65 / RQ-85 / RQ-125

15W~350W

Features　:

Economical non-PFC models

Complete protections

Complete safety certificates

Model

Single：

NES-15 / NES-25 / NES-35 / NES-50 / NES-75 / NES-100 / NES-150 / NES-200 / NES-350

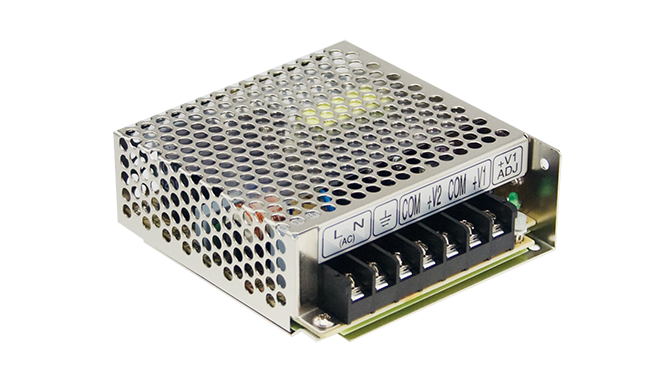

Dual：

NED-35 / NED-50 / NED-75 / NED-100

Triple：

NET-35 / NET-50 / NET-75

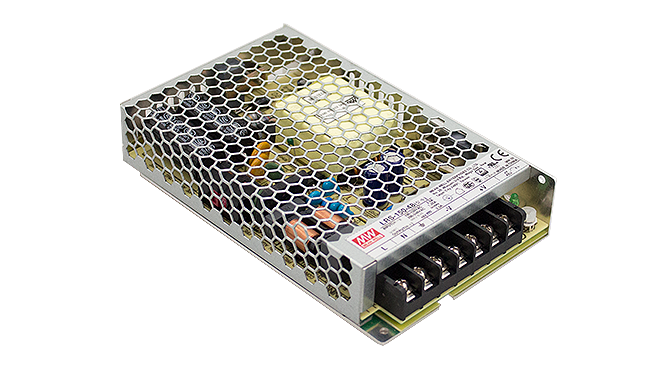

35W~350W

Features　:

Non-PFC, most economical models

Ultra compact and 1U low profile

300VAC input surge

No load power consumption: 0.2W~0.75W

5G vibration, 70℃ operation

Operating altitude up to 5000 meters

Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL60950-1 and GB4943

Model

：

LRS-35 / LRS-50 / LRS-75 / LRS-100 / LRS-150 / LRS-150F / LRS-200 / LRS-350

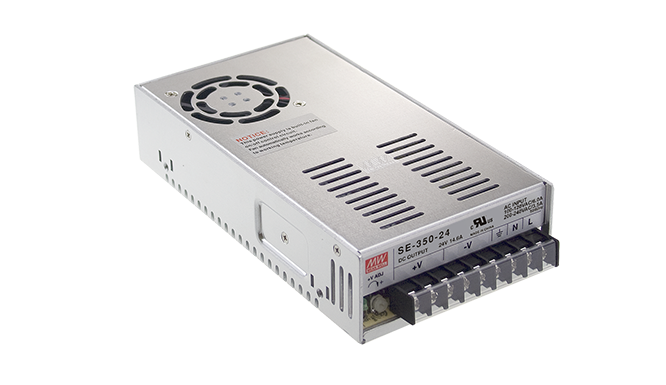

100W~1500W

Features　:

Non-PFC

Economical medium to high power models

Model

：

SE-100 / SE-200 / SE-350 / SE-450 / SE-600 / SE-1000 / SE-1500

75W~750W

Features　:

• Built-in active PFC function
• Full range input, complete functions

Model

Single：

SP-75 / SP-100 / SP-150 / SP-200 / SP-240 / SP-320 / SP-480 / SP-750 / PSP-600

Triple：

TP-75 / TP-100 / TP-150 / TP-7503

Quad：

QP-100 / QP-150 / QP-200 / QP-320 / QP-375

200~500

Features　:

• Slim and Low profile (26~31mm)
• Fanless design,free air convection
• Built-in active PFC function150%
• peak load capability(100ms)
• DC OK active signal and redundant function(option)
• Operating altitude up to 5000 meter (Note.5)
• LED indicator for power on

Model

：

UHP-200(R) / UHP-350(R)

150W~500W

Features　:

1U low profile

Built-in active PFC function

Fanless design

Model

：

USP-150 / USP-225 / USP-350 / USP-500

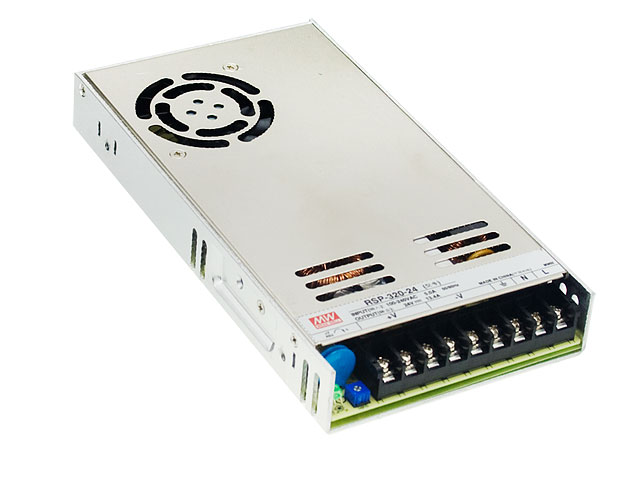

75W~500W

Features　:

1U Low profile with active PFC function: 75W~320W: 30 mm, 500W: 40.5 mm

Built-in constant current limiting circuit (RSP-75/100/150)

Built-in remote ON/OFF control (RSP-75/100/150/500)

Built-in remote sense (RSP-500 only)

Model

：

RSP-75 / RSP-100 / RSP-150 / RSP-200 / RSP-320 / RSP-500

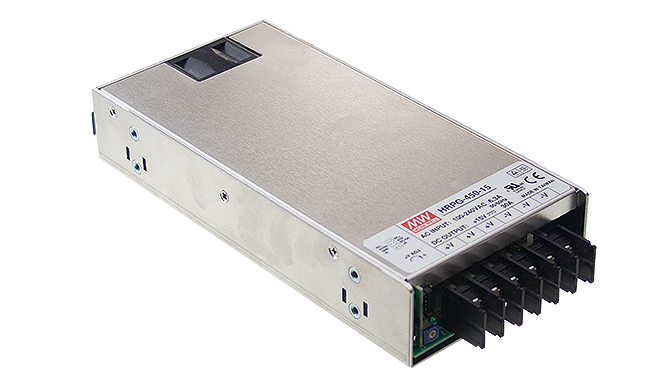

75W~600W

Features　:

• Built-in active PFC function
• High efficiency, no load power consumption <0.5W~0.75W
• 5 years warranty

Model

：

HRP-75 / HRP-100 / HRP-150 / HRPG-150 / HRP-200 / HRPG-200 / HRP-300 / HRPG-300 / HRP-450 / HRPG-450 / HRP-600 / HRPG-600

100W~600W

Features　:

Medical level, built-in active PFC

Medical safety approved (MOOP level)

High efficiency, no load power consumption<0.5W~0.8W

5 years warranty

Model

：

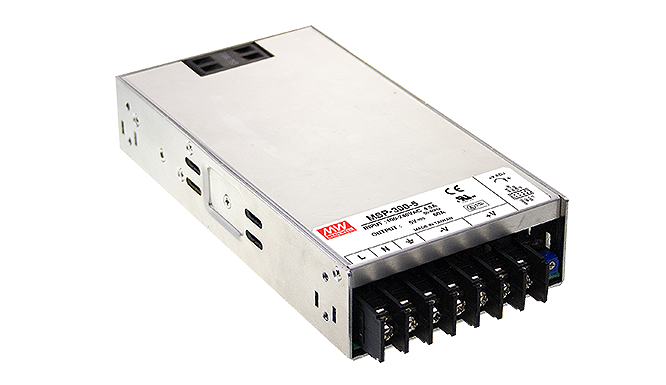

MSP-100 / MSP-200 / MSP-300 / MSP-450 / MSP-600

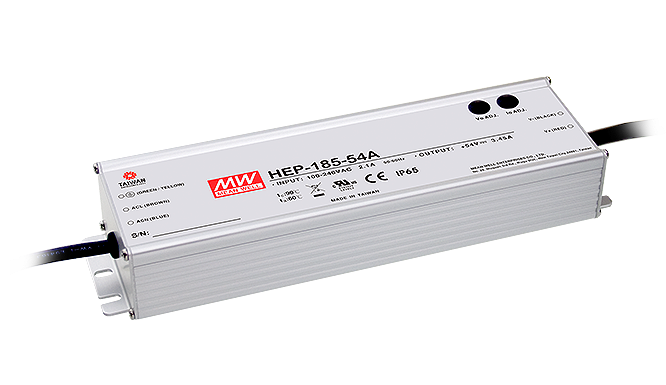

100W~600W

Features　:

90~305VAC with PFC

Fanless design

High efficiency up to 96%

Wide working temperature range -55~+70℃(-40~+70℃ for HEP-600, -55~+65℃ for HEP-480)

Rugged metal case with IP65 design (IP68 option available), withstand 10G vibration

Operating altitude up to 5000 meters

Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment

6 years warranty

Model

Single：

HEP-100 / HEP-150 / HEP-185 / HEP-240 / HEP-320 / HEP-480 / HEP-600

15W~60W

Features　:

Plastic case, step shape

1∅, full range input

Compact size, 1SU~3SU width (DIN EN43880)

Isolation class II

DC output voltage adjustable

No load power consumption <0.3W

Assemble on industrial rail TS-35 / 7.5 or 15

Suitable for building automation and control of household appliance

Model

：

HDR-15 / HDR-30 / HDR-60 / HDR-100

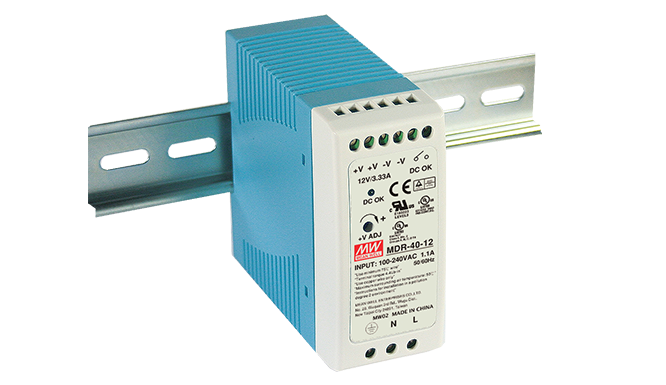

10W~96W

Features　:

Plastic case, ultra slim

1∅, full range input

No load power consumption<0.75W~1W

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in active PFC function

DC OK signal output (MDR-10/20)

DC OK relay contact (MDR-40/60/100)

Class I, Div 2 Hazardous Locations T4 (MDR-40/60)

Model

：

MDR-10 / MDR-20 / MDR-40 / MDR-60 / MDR-100

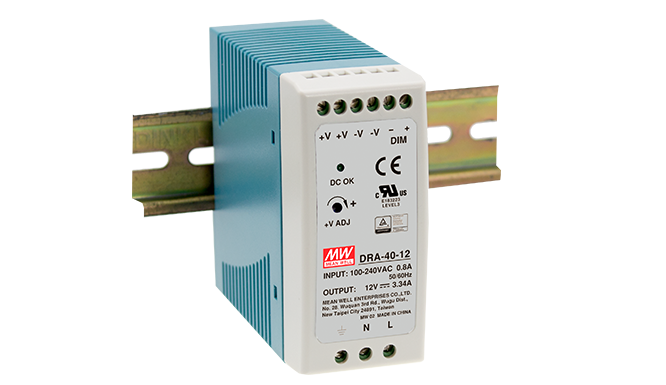

40W~60W

Features　:

Plastic case

1∅, full range input

Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance

Assemble on industrial rail TS-35 / 7.5 or 15

Suitable for machine vision inspection system and plant cultivation applications

Model

：

DRA-40 / DRA-60

15W~100W

Features　:

Plastic case, step shape

1∅, full range input

Isolation class II

No load power consumption <0.5W~1W

Assemble on industrial rail TS-35 / 7.5 or 15

Suitable for building automation and control of household appliance

Model

：

DR-15 / DR-30 / DR-60 / DR-100

45W~480W

Features　:

Metal case (except DR-45)

1∅, full range or 115/230 VAC or 230 VAC only input range by models

Built-in active PFC function (240W~480W)

Model

1-phase：

DR-45 / DR-75 / DR-120 / DRP-240 / DRP-480 / DRP-480S

120W~960W

Features　:

Metal case

2∅ or 3∅, 340~550 VAC input

Fanless design

Model

2-phase：

DRH-120

3-phase：

DRT-240 / DRT-480 / DRT-960

75W~150W

Features　:

Metal case, low cost

1∅, full range input

Slim size, model width: 32 ~ 40mm

EMC EN55022 class A

Assemble on industrial rail TS-35 / 7.5 or 15

2 years warranty

Model

：

EDR-75 / EDR-120 / EDR-150

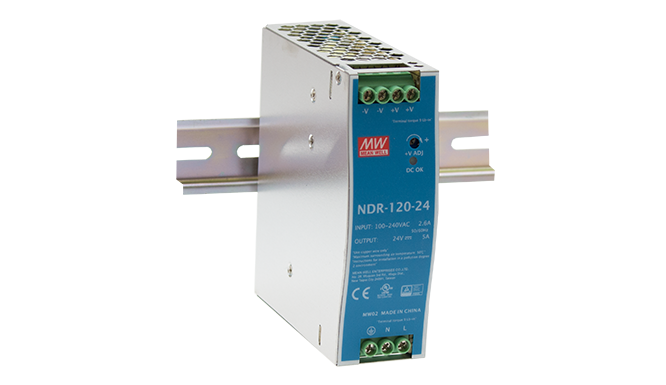

75W~480W

Features　:

Metal case, economical models

1∅, full range input

Slim size, model width: 32 ~ 85.5mm

EMC EN55022 class B

Assemble on industrial rail TS-35 / 7.5 or 15

3 years warranty

Model

：

NDR-75 / NDR-120 / NDR-240 / NDR-480

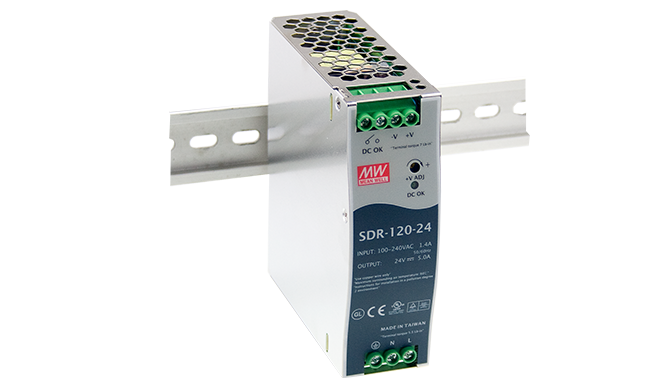

75W~960W

Features　:

Metal case, slim size

1∅, full range input (230VAC only for SDR-960)

94% high efficiency and complete functions

Built-in active PFC function (except SDR-75)

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact (except SDR-75)

130%~150% peak load capability by models

Current sharing function (SDR-480P/960)

Model

：

SDR-75 / SDR-120 / SDR-240 / SDR-480 / SDR-480P / SDR-960

960W

Features　:

Metal case, slim size

3∅, 340~550VAC input

High efficiency up to 94.5%

Built-in active PFC function

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact

Model

：

TDR-480 / TDR-960

120W~480W

Features　:

Metal case, slim size

1∅ and 2∅ , 180~550VAC wide input

High efficiency up to 93%

Built-in active PFC function (240W & 480W)

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact

Model

：

WDR-120 / WDR-240 / WDR-480

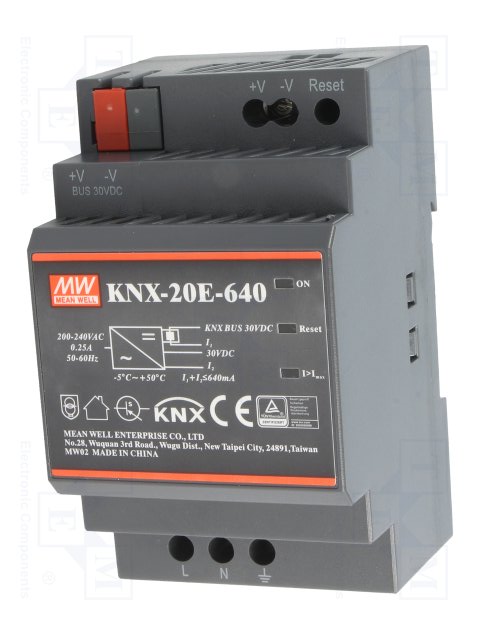

20W

Features　:

EIB/KNX power supply with integrated choke

30VDC/640mA

Compact size with 3SU (52.5mm) width

1∅, 180~264VAC input

No load power consumption <0.5W

Assemble on industrial rail TS-35 / 7.5 or 15

Model

：

KNX-20E-640

NA

Features　:

20A redundant module & 40A DC UPS module

Model

Redundant：

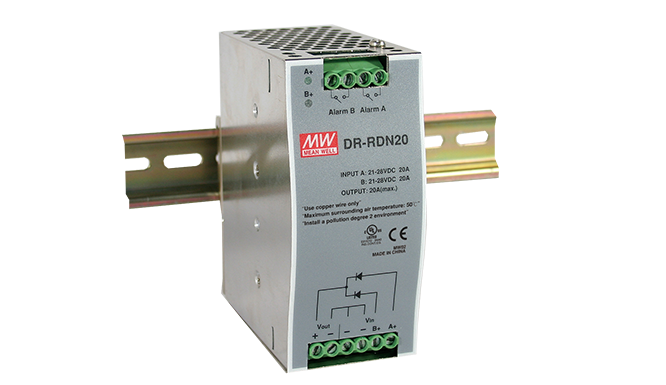

DR-RDN20

UPS ：

DR-UPS40

1W~60W

Features　:

Assemble on the main PCB of the system

Miniature encapsulated type

No load power consumption<0.075W~0.1W

Working temperature:-30~+85℃ by models

Comply with EN55022 class B without any additional components

Various styles: PIN, SMD, Screw terminal style

Model

：

IRM-01 / IRM-02 / IRM-03 / IRM-05 / IRM-10 / IRM-15 / IRM-20 / IRM-30 / IRM-45 / IRM-60

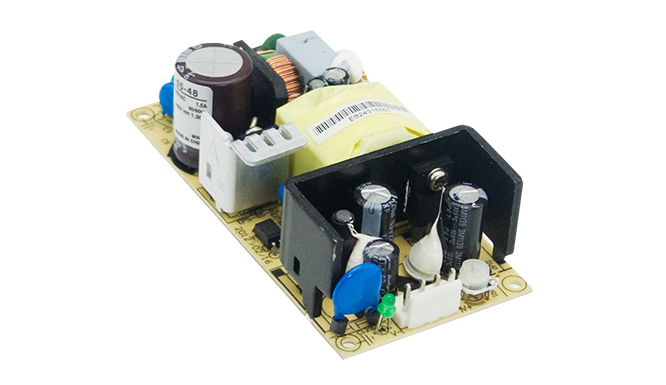

15W~400W

Features　:

3" x 2", 4" x 2", 5" x 3" complete sizes for choice

PFC models: EPP, ELP series;
Non-PFC models: EPS series

No load power consumption <0.1W~0.5W

Suitable for ErP regulated end systems

Model

2.5" x 1.8"：

EPS-15

3" x 2"：

EPS-25 / EPS-35 / EPS-45S / EPS-65S

4" x 2"：

EPS-45 / EPS-65 / EPS-120 / EPP-100 / EPP-150 / EPP-200

5" x 3"：

EPP-300 / EPP-400

Others：

ELP-75

5W~250W

Features　:

PCB type, non-PFC for small wattage models

Multiple form factors for different installations: 7" x 4.25”, 5” x 3”, 4” x 2”, slim type

Model

Single：

PS-05 / PS-15 / PS-25 / PS-35 / PS-45 / PS-65 / PPS-125 / ASP-150 / PPS-200 / LPS-50 / LPS-75 / LPS-100 / LPP-100 / LPP-150

Dual：

PD-25 / PD-45 / PD-65 / RPD-65 / PD-110 / PID-250

Triple：

PT-45 / PT-4503 / PT-65 / PT-6503 / RPT-65 / PPT-125

Quad：

PQ-100 / PPQ-100 / PPQ-1003

5W~20W

Features　:

Assemble on the main PCB of the system

Medical safety approved (2xMOPP)

Suitable for BF application with appropriate system consideration

Model

Encapsulated Type：

PM-05 / PM-10 / PM-15 / PM-20 / MPM-05 / MPM-10

PCB Type：

NFM-05 / NFM-10 / NFM-15 / NFM-20 / MFM-05 / MFM-10

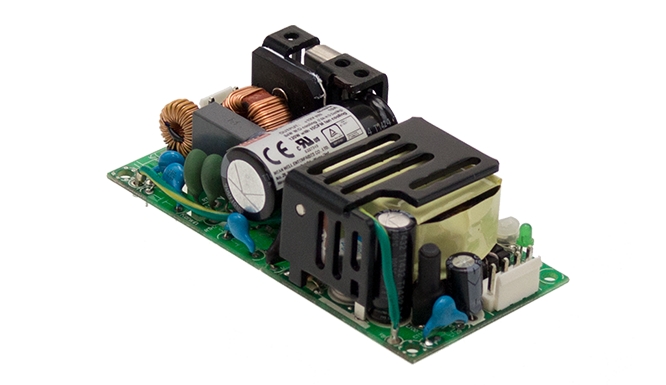

30W~300W

Features　:

Compact size, 3"x2" for RPS-30/45/65; 4"x2" for RPS-120/200

PCB type, non-PFC for small wattage models

Medical safety approved (2xMOPP)

Low leakage current

Suitable for BF application with appropriate system consideration for selected models

Model

Single：

MPS-30 / MPS-45 / MPS-65 / MPS-200 / RPS-30 / RPS-45 / RPS-65 / RPS-120 / RPS-200 / RPS-60 / RPS-75 / RPS-160 / RPS-300 / RPS-400

Dual：

MPD-45 / MPD-65 / MPD-200 / RPD-60 / RPD-75 / RPD-160

Triple：

MPT-45 / MPT-65 / RPT-60 / RPT-75 / RPT-160

Quad：

MPQ-200 MPQ-200

250W~300W

Features　:

Low profile for 1U/2U for rack system

Suitable for industrial PC applications

Model

：

IPC-250 / IPC-300

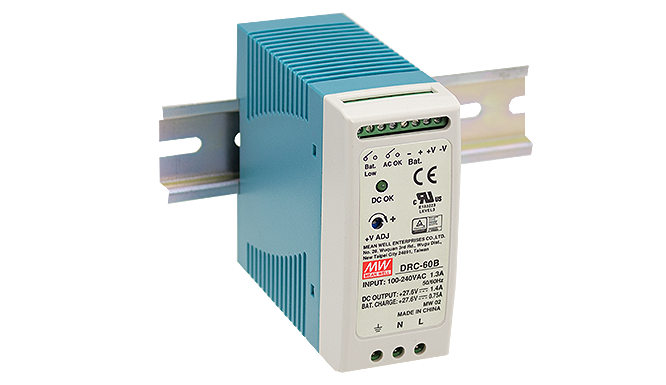

40W~100W

Features　:

With UPS function (need external batteries)

Suitable for security industry or battery backup systems

Assemble on industrial rail TS-35 / 7.5 or 15

Model

：

DRC-40 / DRC-60 / DRC-100

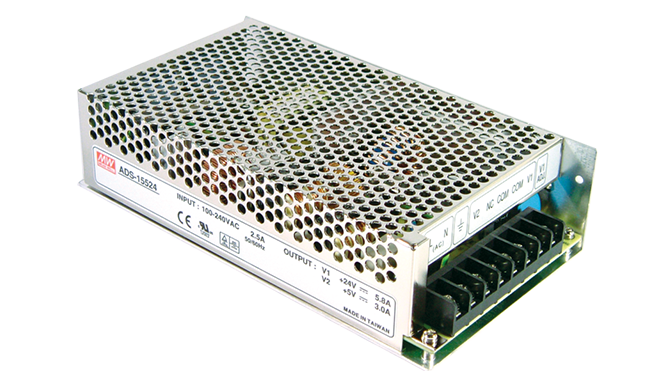

35W~155W

Features　:

With UPS function (need external batteries) for AD/ADD series

Suitable for security industry or battery backup systems

Model

Single：

SCP-35 / SCP-50 / SCP-75

Dual：

AD-55 / ADS-55 / AD-155 / ADS-155

Triple：

ADD-55 / ADD-155

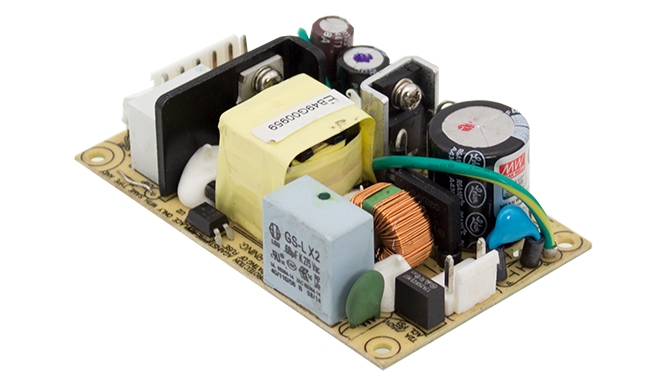

35W~160W

Features　:

With UPS function (need external batteries)

Suitable for security industry or battery backup systems

Built-in active PFC function (PSC-160)

Case available

Model

：

PSC-35 / PSC-60 / PSC-100 / PSC-160

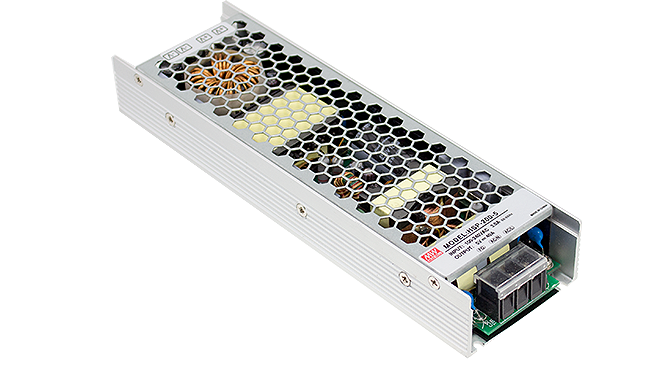

150W~400W

Features　:

PFC: HSP, HDP series, UHP series
Non-PFC: HSN, NEL, ERP series

Light weight and low profile

HSP series—2.5V, 2.8V, 3.6V, 3.8V, 4.2V, 5V
HSN series—4.2V, 5V
NEL series—2.8V, 4.2V, 5V
HDP series—V1: 2.8V, V2:3.8V
ERP series—24V, 36V, 48V
UHP series—4.2V,4.5V,5V

Suitable for high efficiency moving sign applications

Conformal coating (HSP, HDP, NEL, HSN series)

Semi-potted and design against rain splash (ERP-350)

Model

Single：

HSP-150 / HSP-200 / HSP-250 / HSP-300 / HSN-200 / HSN-300 / NEL-200 / NEL-300 / NEL-400 / ERP-350 / UHP-200A / ERPF-400

Dual：

HDP-190 / HDP-240

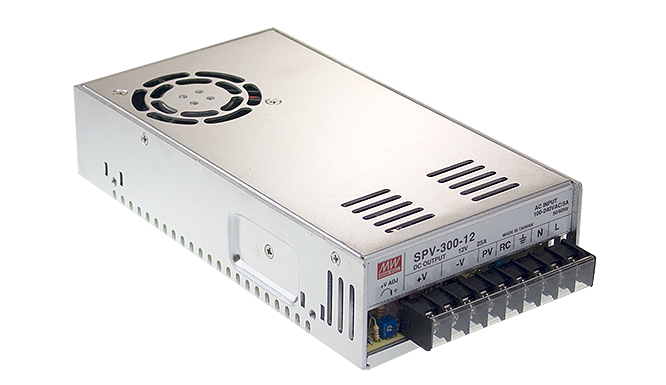

150W~1500W

Features　:

Built-in active PFC function

Output voltage programmable from 20~110%

Built-in current sharing (SPV-1500)

Model

：

SPV-150 / SPV-300 / SPV-1500

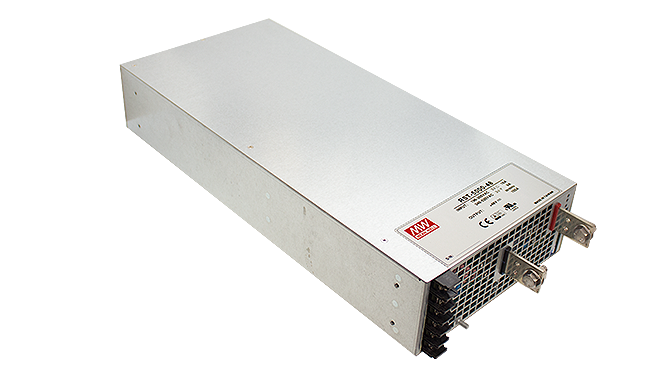

5000W~10000W

Features　:

Single output power supply with 5000W / 10000W high wattage

3 phase input:3-wire / △196~305VAC or 4-wire / Y340~530VAC

Built-in active PFC function

High efficiency up to 91%

20000W with built-in parallel (active current sharing) function

Output voltage and constant current level programmable

5 years warranty

Model

：

RST-5000 / RST-10000

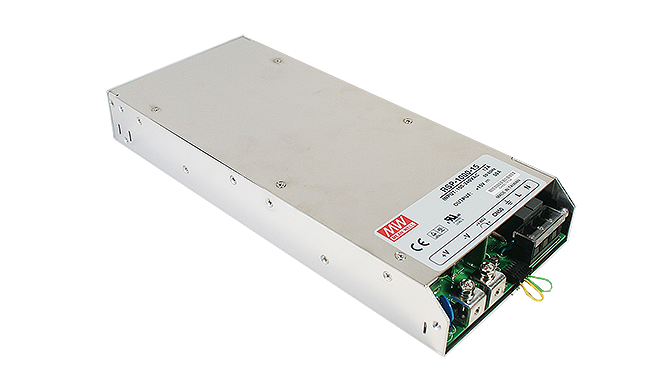

750W~3000W

Features　:

Programmable high power with active PFC function

Output voltage programmable

Constant current level Icc programmable (RSP-750/1600 only)

1U low profile (41mm) : RSP-750/1000/1600/2000,
2U profile : RSP-1500/2400/3000

Built-in current sharing (except RSP-750)

5 years warranty

Model

：

RSP-750 / RSP-1000 / RSP-1500 / RSP-1600 / RSP-2000 / RSP-2400 / RSP-3000

1000W~18000W

Features　:

Complete rack mountable front end solution: rectifier and charger

1U low profile

19 inch rack shelf available

Model

Power：

RCP-1000 / RCP-1600 / RCP-2000

Charger：

RCB-1600

Rack：

RCP-1U / RHP-1U / RKP-1U

Controller & Monitor ：

RCP-MU / RKP-CMU1

450W/650W/1000W

Features　:

Configurable/customizable/flexible power supply

Built-in active PFC function

5 slot output for MP450/650,
7 slot output for MP1k0

75W/100W/150W/210W/300W/360W module available

Model

：

MP450 / MP650 / MP1K0

8W~35W

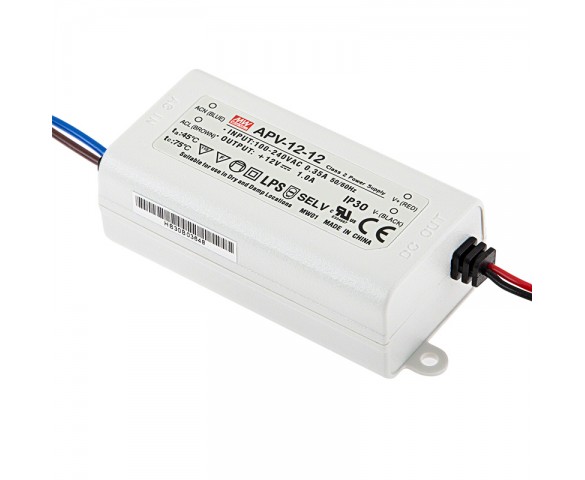

Features　:

90~264VAC input

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV series

Constant current mode for APC series

Suitable for indoor LED lighting and moving sign applications

Model

C.V.：

APV-8 / APV-12 / APV-16 / APV-25 / APV-35

C.C.：

APC-8 / APC-12 / APC-16 / APC-25 / APC-35

8W~16W

Features　:

180~264VAC input only

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV-E series

Constant current mode for APC-E series

Suitable for indoor LED lighting and moving sign applications

Model

C.V.：

APV-8E / APV-12E / APV-16E

C.C.：

APC-8E / APC-12E / APC-16E

60W~96W

Features　:

90~295VAC input, built-in active PFC function

Metal case, IP66 design for indoor or outdoor installations

User adjustable output voltage and current level

Suitable for LED street lighting and outdoor LED lighting applications

Model

C.C.：

CEN-60 / CEN-75 / CEN-100

60W~150W

Features　:

• 90~295VAC input, built-in active PFC function
• Metal case, IP67/IP65 design for indoor or outdoor installations
• Output current adjustable through output cable or internal potentiometer (CLG-150)
• Suitable for LED street lighting, outdoor LED lighting and moving sign applications

Model

C.C.：

CLG-60

C.V.+C.C.：

CLG-100 / CLG-150

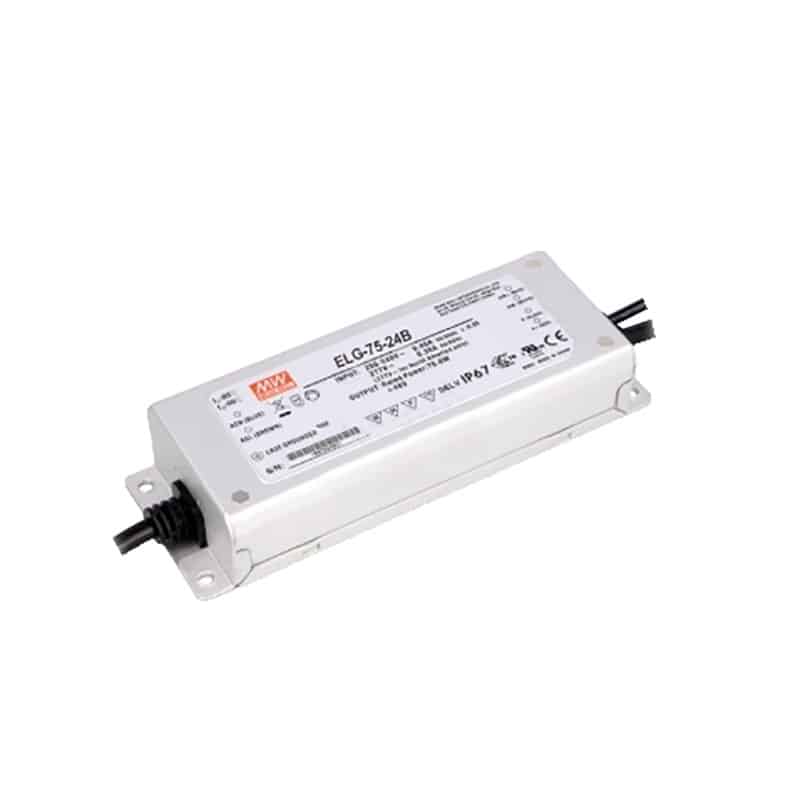

75W~240W

Features　:

100~305VAC input range

Built-in active PFC function

No load/standby power consumption <0.5W

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

Model

C.V.+C.C.：

ELG-75 / ELG-100 / ELG-150 / ELG-200 / ELG-240

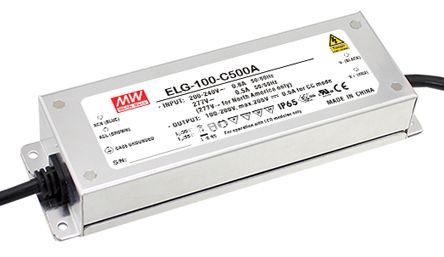

75W~240W

Features　:

100~305VAC input range

Constant current (C.C.) output

Built-in active PFC function

No load/standby power consumption <0.5W

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

Model

C.C.：

ELG-75-C / ELG-100-C / ELG-150-C / ELG-200-C / ELG-240-C / ELGT-150-C

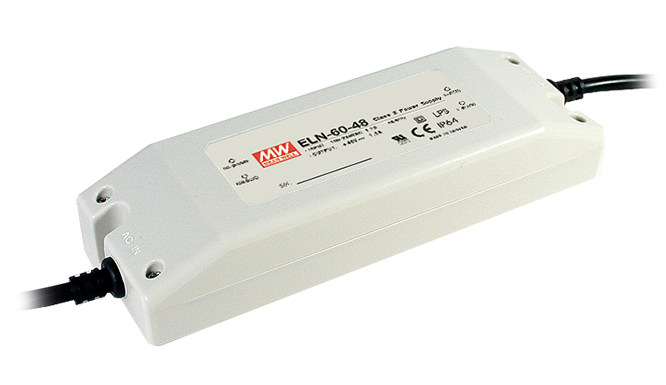

30W~60W

Features　:

90~264VAC input

Fully isolated plastic case with IP64 level

Optional dimming function: 1.1~10VDC(D type) or PWM(P type) controlled

Suitable for economical LED lighting and moving sign applications

Model

C.V.+C.C.：

ELN-30 / ELN-60

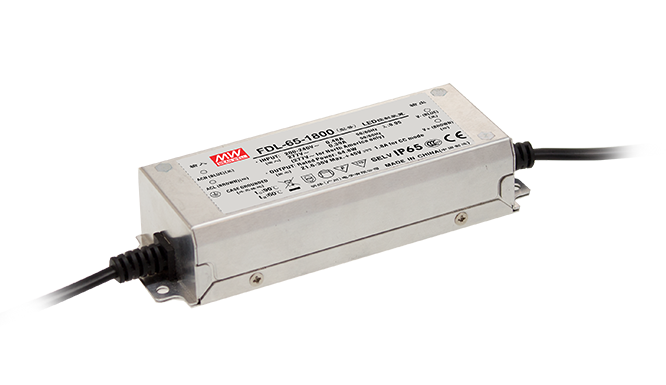

65W

Features　:

180~295VAC input range

Built-in active PFC function

Constant current design

Fully encapsulated with IP65 level

No load power consumption <0.5W

3 years warranty

Model

C.C.：

FDL-65

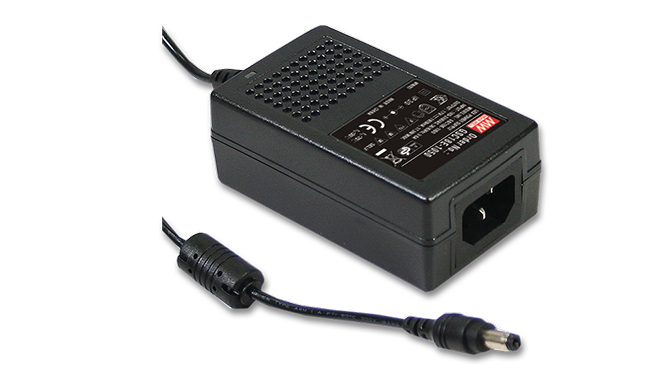

18W~40W

Features　:

90~277VAC input, built-in active PFC function

Constant current mode

Fully isolated plastic case with IP40 design

Class II design, without FG

IEC320-C8 inlet for B type,
2 pole EURO plug for E type

No load power consumption<0.15W

Suitable for indoor LED lighting

Model

IEC320-C8：

GSC18B / GSC25B / GSC40B

EURO 2Pin：

GSC18E / GSC25E / GSC40E

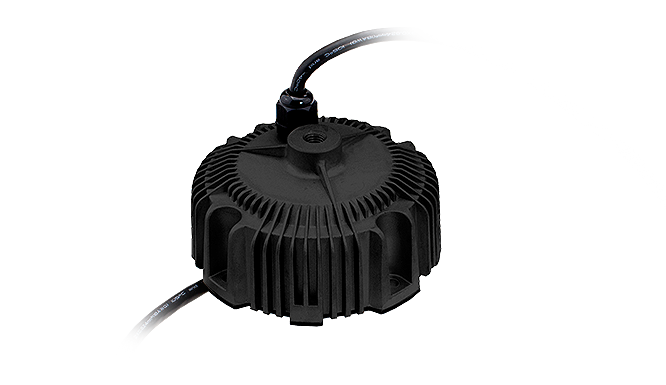

60W~240W

Features　:

Circular shape design:
HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type

90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]

Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB type

IP67/IP65 design for indoor or outdoor installations for HBG-100/160/240

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B type

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)

Suitable for LED high/low bay lighting, stage lighting and spot lighting

5 years warranty

Model

Case：

HBG-60 / HBG-100(DA) / HBG-160(DA) / HBG-240

PCB：

HBG-60-P / HBG-100P(DA) / HBG-160P(DA) / HBG-240P

40W~600W

Features　:

90~305VAC input, built-in active PFC function

96% high efficiency (HLG-600H)

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement

IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)

7 years warranty

Model

C.V.+C.C.：

HLG-40H / HLG-60H / HLG-80H / HLG-100H / HLG-120H / HLG-150H / HLG-185H / HLG-240H / HLG-320H / HLG-600H / HLG-480H

70W~320W

Features　:

90~305VAC input, built-in active PFC function

Constant current output with high output voltage >60VDC

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)

Suitable for LED street lighting and outdoor LED lighting

7 years warranty

Model

C.C.：

HLG-60H-C / HLG-80H-C / HLG-120H-C / HLG-185H-C / HLG-240H-C / HLG-320H-C / HLG-480H-C

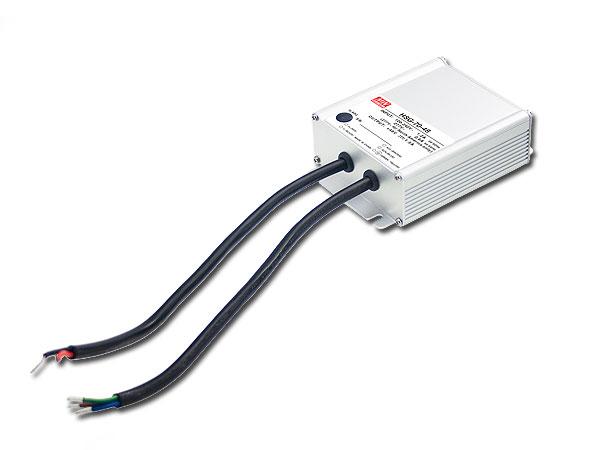

70W

Features　:

90~305VAC input, built-in active PFC function

Rectangular metal case

IP65 design for indoor or outdoor installations

Model

C.V.+C.C.：

HSG-70

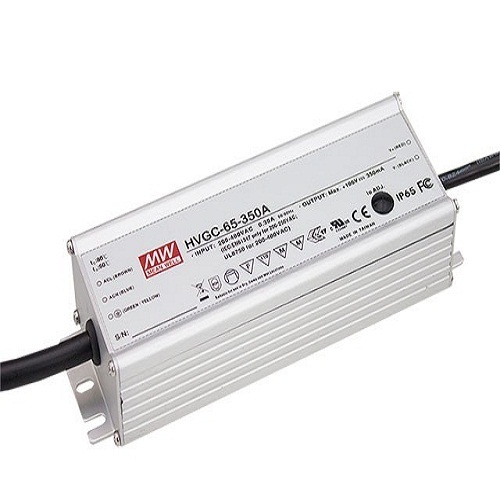

65W~320W

Features　:

Wide input range 180~528VAC

Metal case, IP67/IP65 design for indoor or outdoor installations

Built-in active PFC function

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); timer dimming; smart timer dimming

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (except for HVG-65 and HVGC-65/100)

Suitable for LED street lighting and outdoor LED lighting applications

5 years warranty

Model

C.V.+C.C.：

HVG-65 / HVG-100 / HVG-150 / HVG-240 / HVG-320 / HVG-480

C.C.：

HVGC-65 / HVGC-100 / HVGC-150 / HVGC-240 / HVGC-320

300/350/500/600mA

Features　:

Constant current DC/DC buck-boost LED driver

High efficiency up to 91%

Comply with EN55015 and FCC part 15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Suitable for buck-boost type lighting systems (additional mother board is required)

Pin, wire style for choice

Model

Buck-boost：

LDB-L

300/350/500/600mA

Features　:

Constant current DC/DC buck-boost LED driver

High efficiency up to 91%

Comply with EN55015 and FCC part 15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Suitable for buck-boost type lighting systems (additional mother board is required)

Pin, wire style for choice

Model

Buck-boost：

LDB-L

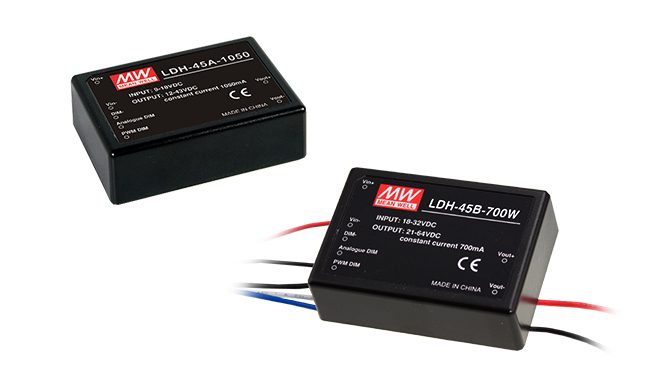

350/500/700/1050mA

Features　:

Constant current output DC/DC step-up LED driver

High efficiency up to 95%

Comply with EN55015 without additional any components

PWM+analog dimming and remote ON/OFF control

Suitable for boost type lighting systems (Additional mother board is required)

Pin, wire style for choice

Model

Step-up：

LDH-45(DA)

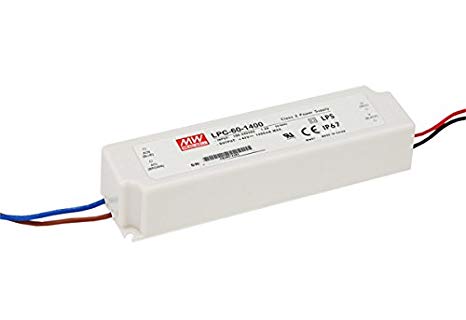

18W~150W

Features　:

90~264VAC input (except for 18W and 150W)

Slim plastic case with IP67 level

Economical design

Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)

-30~70℃ wide operation range

Suitable for economical LED lighting and moving sign applications

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPVL-150 only)

Model

C.V.：

LPL-18 / LPH-18 / LPV-20 / LPV-35 / LPV-60 / LPV-100 / LPVL-150 / LPV-150

C.C.：

LPLC-18 / LPHC-18 / LPC-20 / LPC-35 / LPC-60 / LPC-100 / LPC-150

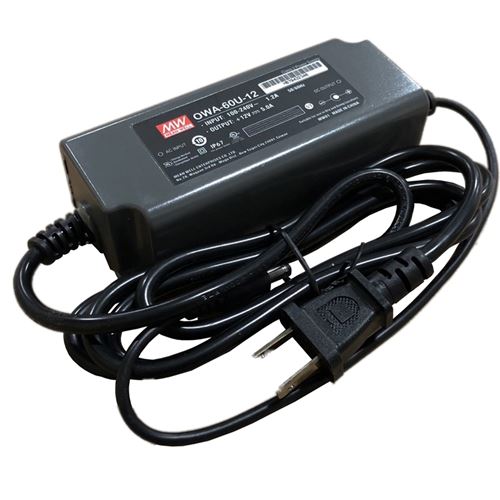

60W~120W

Features　:

IP67 design for power body

Class II design, without FG

2 pole USA plug (U type)/ EURO plug (E type)

90~264VAC input (180~264VAC input for OWA-120E)

No load power consumption <0.15W

Energy efficiency Level VI

E-Type: meet CoC Version 5 (OWA-60E/90E); comply with EU ErP
U-Type: comply with EISA 2007/DoE and NRCan

5 years warranty

Model

USA 2Pin：

OWA-60U / OWA-90U / OWA-120U

16W~60W

Features　:

16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC

AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers

Fully isolated plastic case with IP42 level

Built-in active PFC function

Class II design, without FG

Constant current mode

Suitable for indoor LED lighting

Model

C.C.：

PCD-16 / PCD-25 / PCD-40 / PCD-60

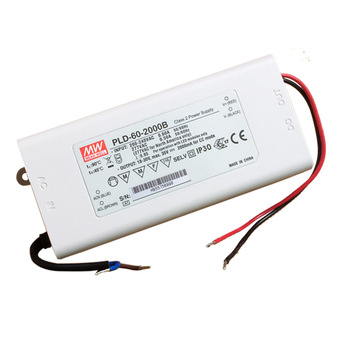

16W~60W

Features　:

16W: 90~135VAC or 180~295VAC
25W: 90~295VAC
40W/60W: 180~295VAC

Built-in active PFC function

Fully isolated plastic case with IP42 level

Class II design, without FG

Constant current mode

Suitable for indoor LED lighting

Model

C.C.：

PLD-16 / PLD-25 / PLD-40 / PLD-60

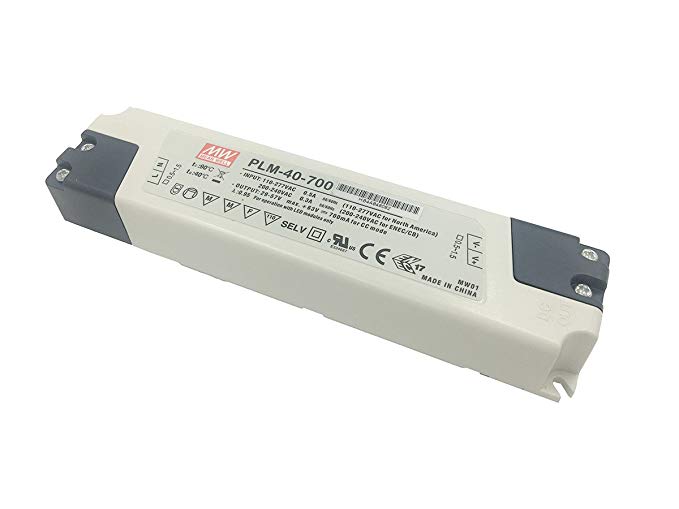

12W~40W

Features　:

110~295VAC input (180~295VAC input for E type)

Built-in active PFC function

Fully isolated plastic case with IP30 level

Class II design, without FG

Push terminal I/O

Constant current mode

No load power consumption<0.5W

Suitable for indoor LED lighting

Model

C.C.：

PLM-12 / PLM-25 / PLM-40

150W

Features　:

90~295VAC input, built-in active PFC function

High efficiency up to 93%

U-bracket low profile: 33mm, suitable for built-in LED lighting systems

Model

C.V.：

ULP-150

45W~65W

Features　:

Built-in active PFC function

Constant current output mode

Flicker free design

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

Model

C.C.：

ODLC-45 / ODLC-65(DA)

C.V. ：

ODLV-45 / ODLV-65

300/350/500/600/700mA

Features　:

• Constant current output DC/DC step-down converter
• High efficiency up to 97%
• Comply with EN55015 and FCC part15 without additional input filter and capacitors
• PWM dimming and remote ON/OFF control
• Protections: Short circuit / Over temperature
• Cooling by free air convection
• Fully encapsulated with IP67 level for pin and wire style
• Suitable for driving illumination LED
• 3 years warranty

Model

C.C：

LDD-L

300/350/500/600/700mA

Features　:

• Constant current output DC/DC step-down converter
• High efficiency up to 97%
• Comply with EN55015 and FCC part15 without additional input filter and capacitors
• PWM dimming and remote ON/OFF control
• Protections: Short circuit / Over temperature
• Cooling by free air convection
• Fully encapsulated with IP67 level for pin and wire style
• Suitable for driving illumination LED
• 3 years warranty

Model

C.C：

LDD-H / LDD-H-DA

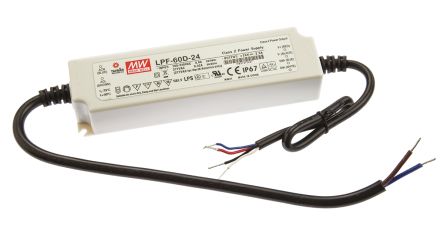

16W~90W

Features　:

90~305VAC input, built-in active PFC function (200~400VAC for LPFH-60/60D)

Fully isolated plastic case with IP67 level (16W optional)

Class II design, without FG

Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D & LPFH-60/60D)

Suitable for LED lighting and moving sign applications

5 years warranty

Model

C.V.+C.C.：

LPF-16 / LPF-25 / LPF-40 / LPF-60 / LPF-90 / LPFH-60

C.C. (3 in 1 Dimming)：

LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPF-90D / LPFH-60D

40W~120W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Class II design, without FG

No load/standby power consumption<0.15W (<0.5W for D type)

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]

Suitable for LED lighting and moving sign applications

5 years warranty

Model

C.V.+C.C.：

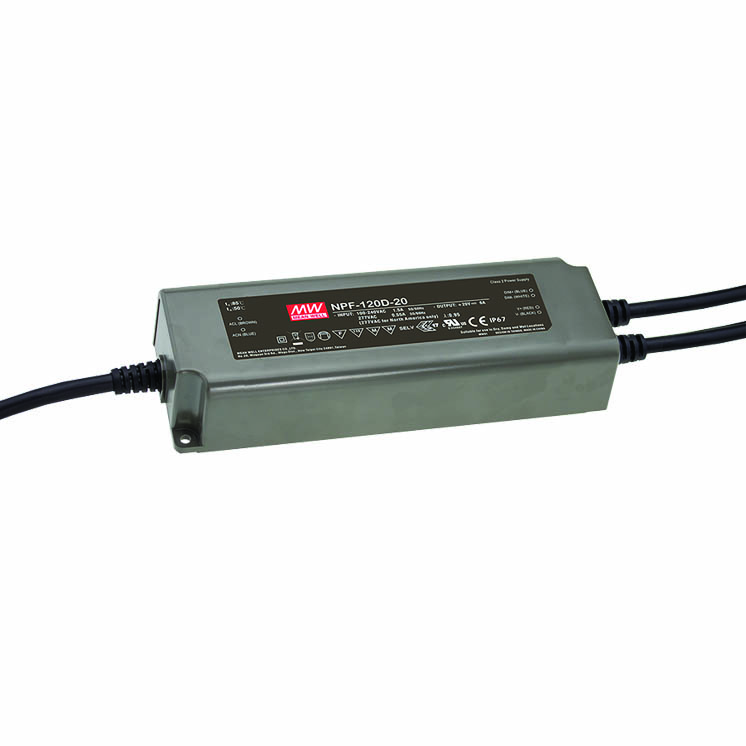

NPF-40 / NPF-60 / NPF-90 / NPF-120

C.C. (3 in 1 Dimming)：

NPF-40D / NPF-60D / NPF-90D / NPF-120D

40W~120W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Constant voltage PWM style output

Class II design, without FG

No load power consumption<0.5W

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (PWM-40/60/120 only)

Suitable for LED strip lighting

5 years warranty

Model

C.V.：

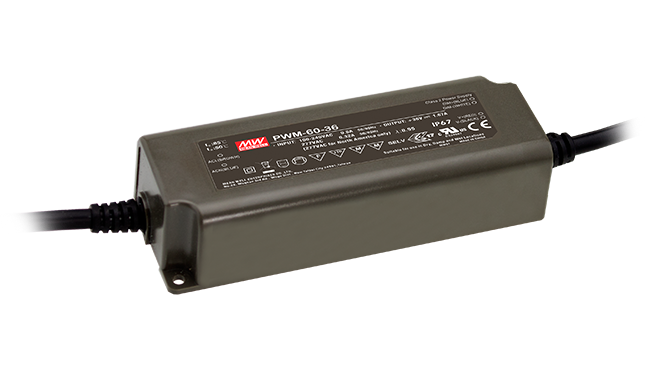

PWM-40 / PWM-60 / PWM-90 / PWM-120(DA)

30W~96W

Features　:

90~264VAC input, built-in active PFC function

Fully isolated plastic case with screw terminal style of I/O

Suitable for indoor LED lighting and moving sign applications

Model

C.C.：

PLC-30 / PLC-45 / PLC-60

C.V.+C.C.：

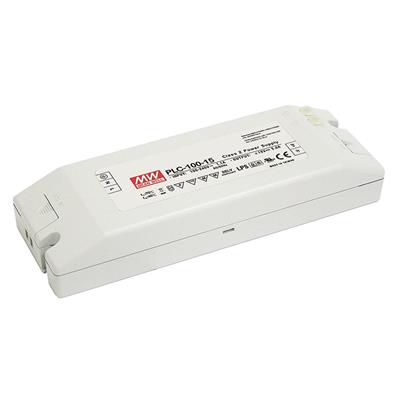

PLC-100

20W~96W

Features　:

90~295VAC input (90~277VAC for PLN-20), built-in active PFC function

Fully isolated plastic case with IP64 level

Suitable for indoor LED lighting and moving sign applications

Model

C.C.：

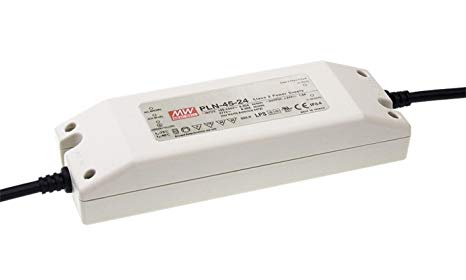

PLN-20 / PLN-30 / PLN-45 / PLN-60

C.V.+C.C.：

PLN-100

40W~80W

Features　:

90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP64 level

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type

User adjustable output voltage and current level for A type

Suitable for indoor LED lighting and moving sign applications

Model

C.V.+C.C.：

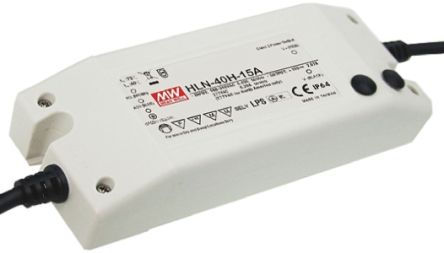

HLN-40H / HLN-60H / HLN-80H

25W~60W

Features　:

180~295VAC input for 40W/60W, 180~277VAC input for 25W

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

Model

3 in 1 Dimming：

LCM-25 / LCM-40(EO) / LCM-60(EO)

DALI Dimming：

LCM-25DA / LCM-40DA / LCM-60DA

40W~60W

Features　:

90~132VAC input only

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

Model

3 in 1 Dimming：

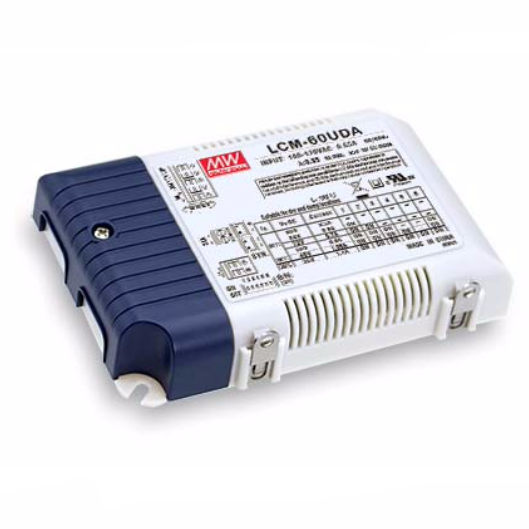

LCM-40U(EO) / LCM-60U(EO)

DALI Dimming：

LCM-40UDA / LCM-60UDA

25W~65W

Features　:

Built-in active PFC function

Constant current output mode

Flicker free design

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

Model

C.C.：

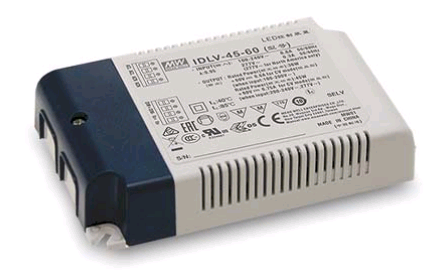

IDLC-25 / IDLC-45(DA) / IDLC-65(DA)

C.V. ：

IDLV-45 / IDLV-65

20W~60W

Features　:

90~264VAC input (90~277VAC for PLP-20), built-in active PFC function

Suitable for built-in LED lighting systems

Model

C.C.：

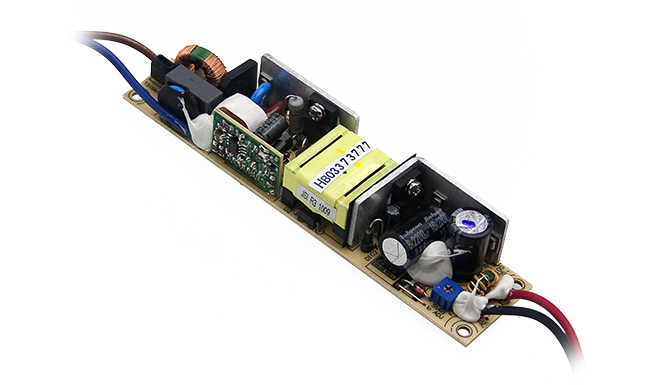

PLP-20 / PLP-30 / PLP-45 / PLP-60

25W~65W

Features　:

Built-in active PFC function

Constant current output mode

Flicker free design

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for built-in LED lighting systems

Model

C.C.：

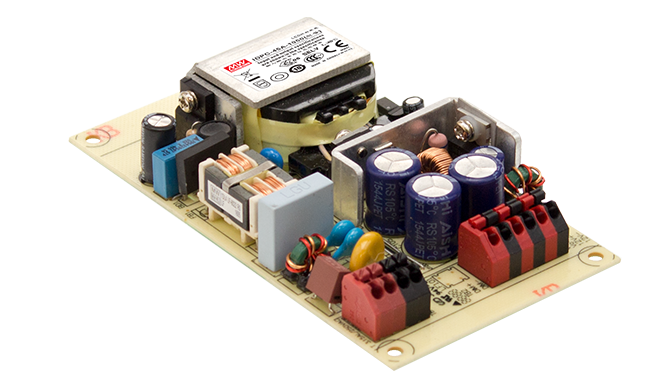

IDPC-25 / IDPC-45 / IDPC-65(DA)

40W~80W

Features　:

90~305VAC input, built-in active PFC function

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Suitable for built-in LED lighting systems

Model

C.C.：

HLP-40H / HLP-60H / HLP-80H

30W~60W

Features　:

Non-isolated

3:1 wide input range

High efficiency up to 96%

Built-in remote ON/OFF control

Economical open frame design

Model

：

NID30 / NID60

5W~15W

Features　:

4:1 wide input range

1~1.5KVDC isolation by models

Built-in remote ON/OFF contro

Low cost, high reliability

Model

Single：

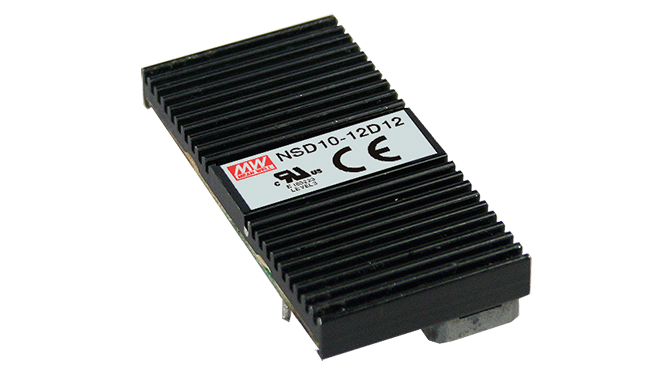

NSD05-S / NSD10-S / NSD15-S

Dual：

NSD10-D / NSD15-D

5W~45W

Features　:

2:1 wide input range

1.5~2KVAC isolation by models

Model

：

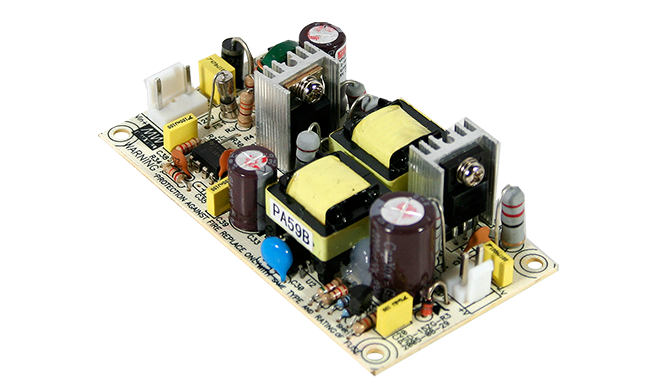

PSD-05 / PSD-15 / PSD-30 / PSD-45

30W~300W

Features　:

Compliance with EN50155 and EN45545-2 railway standard

2:1 or 4:1 wide input range

Isolation: 4000VDC

1U low profile

Half encapsulated

Model

：

RSD-30 / RSD-60 / RSD-100 / RSD-150 / RSD-200 / RSD-300

15W~1000W

Features　:

2:1 wide input range (4:1 for SD-500/1000)

1.5~2KVAC isolation by models

1U low profile (41mm) for SD-1000

12V/0.25A auxiliary output for SD-500/1000

Built-in remote ON/OFF control and remote sense for SD-500/1000

Model

：

SD-15 / SD-25 / SD-50 / SD-100 / SD-150 / SD-200 / SD-350 / SD-500 / SD-1000

100W~2500W

Features　:

Modified sine wave output, suitable for resistive load

Low cost

1 year warranty

Model

：

A300-100 / A300-150 / A300-300 / A300-600 / A300-1K0 / A300-1K7 / A300-2K5

1500W~3000W

Features　:

True sine wave with solar charger & by-pass function

High surge power up to 200%

Output voltage / frequency adjustable

Conformal coating

Computer-based monitoring software, recommended for Windows 7 and Windows 8 Operating System (English and Chinese version)

3 years warranty

Model

：

TN-1500 / TN-3000

200W~3000W

Features　:

True sine wave output, suitable for motor related applications

High surge power up to 200%

Output voltage / frequency adjustable

Conformal coating (except for TS-200/400)

3 years warranty

Model

：

TS-200 / TS-400 / TS-700 / TS-1000 / TS-1500 / TS-3000

Features　:

Remote controller for TS-700~3000 , TN-1500~3000

Model

：

IRC1 / IRC2 / IRC3

500W

Features　:

ISI-500: Modified sine wave with MPPT solar charger

ISI-501: True sine wave with MPPT solar charger

High surge power up to 200%

2 years warranty (ISI-500), 3 years warranty (ISI-501)

Model

：

ISI-500 / ISI-501
